Mitmproxy 7

16 Jul 2021, Maximilian Hils @maximilianhils

We’re delighted to announce the release of mitmproxy 7, a free and open source interactive HTTPS proxy. This release is all about our new proxy core, which bring substantial improvements across the board and represents a massive milestone for the project.

What’s in the release?

In this post we’ll focus on some of the user-facing improvements coming with mitmproxy 7. If you are interested in the technical details of our new sans-io proxy core, check out our blog post dedicated to that!

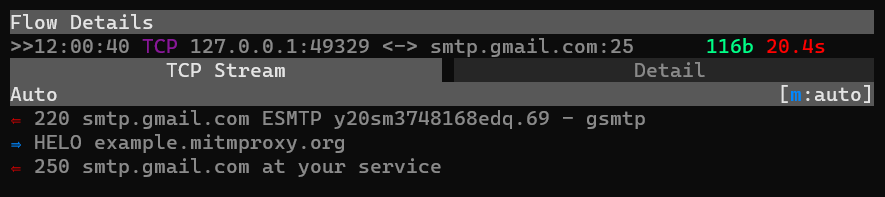

Full TCP Support

Mitmproxy now supports proxying raw TCP connections out of the box, including ones that start with a server-side greeting – for example SMTP. Opportunistic TLS (STARTTLS) is not supported yet, but regular TCP-over-TLS just works!

HTTP/1 ⇔ HTTP/2 Interoperability

Mitmproxy can now accept HTTP/2 requests from the client and forward them to an HTTP/1 server. This on-the-wire protocol translation works bi-directional: All HTTP requests and responses were created equal!. This change also makes it possible to change the request destination for HTTP/2 flows, which previously was not possible at all.

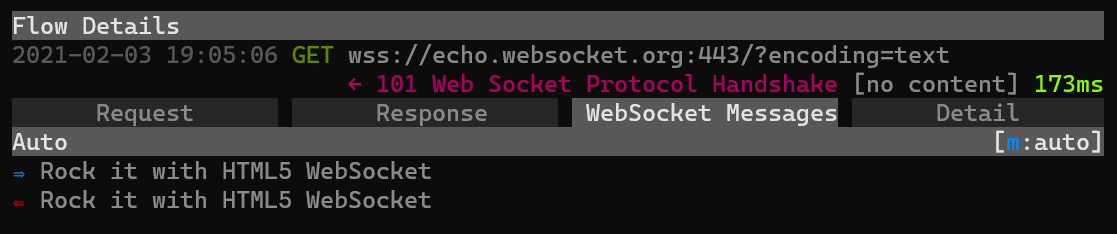

WebSocket Message Display

Mitmproxy now displays WebSocket messages not only in the event log, but also in a dedicated UI tab! There are still UX details to be ironed out, but we’re excited to ship a first prototype here. While this is only for the console UI via mitmproxy, the web UI via mitmweb is still looking for amazing contributors to get feature parity!

Secure Web Proxy (TLS-over-TLS)

Clients usually talk in plaintext to HTTP proxies – telling them where to connect – before they ultimately establish a secure TLS connection through the proxy with the destination server. With mitmproxy 7, clients can now establish TLS with the proxy right from the start (before issuing an HTTP CONNECT request), which can add a significant layer of defense in public networks.

So instead of simply specifying http://127.0.0.1:8080 you can now also use HTTPS via https://127.0.0.1:8080 (or any other listen host and port).

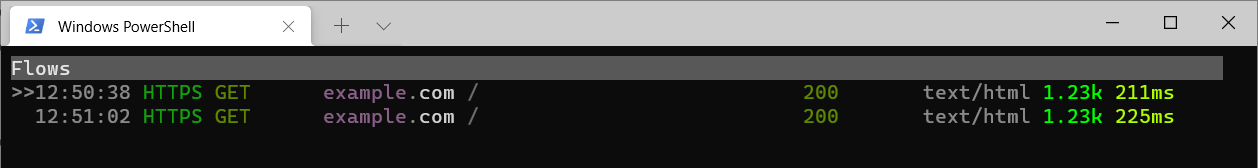

Windows Support for Console UI

Thanks to an experimental urwid patch, mitmproxy’s console UI is now natively available on Windows. While the Window Subsystem for Linux (WSL) has been a viable alternative for a while, we’re very happy to provide the same tools across all platforms now.

API Reference Documentation

Having recently adopted the pdoc project, which generates awesome Python API documentation, we have built a completely new API reference documentation for mitmproxy’s addon API. Paired with our existing examples on GitHub, this makes it much simpler to write mitmproxy new addons.

What’s next?

While this release focuses heavily on our backend, the next mitmproxy release will come with lots of mitmweb improvements by our current GSoC 2021 student @gorogoroumaru. Stay tuned!


Release Changelog

Since the release of mitmproxy 6 about seven months ago, the project has had 527 commits by 28 contributors, resulting in 234 closed issues and 173 closed pull requests.

New Proxy Core (@mhils)
  • Secure Web Proxy: Mitmproxy now supports TLS-over-TLS to already encrypt the connection to the proxy.
  • Server-Side Greetings: Mitmproxy now supports proxying raw TCP connections, including ones that start with a server-side greeting (e.g. SMTP).
  • HTTP/1 – HTTP/2 Interoperability: mitmproxy can now accept an HTTP/2 connection from the client, and forward it to an HTTP/1 server.
  • HTTP/2 Redirects: The request destination can now be changed on HTTP/2 flows.
  • Connection Strategy: Users can now specify if they want mitmproxy to eagerly connect upstream or wait as long as possible. Eager connections are required to detect protocols with server-side greetings, lazy connections enable the replay of responses without connecting to an upstream server.
  • Timeout Handling: Mitmproxy will now clean up idle connections and also abort requests if the client disconnects in the meantime.
  • Host Header-based Proxying: If the request destination is unknown, mitmproxy now falls back to proxying based on the Host header. This means that requests can often be redirected to mitmproxy using DNS spoofing only.
  • Internals: All protocol logic is now separated from I/O (“sans-io”). This greatly improves testing capabilities, prevents a wide array of race conditions, and increases proper isolation between layers.
Additional Changes
  • mitmproxy’s command line interface now supports Windows (@mhils)
  • The clientconnect, clientdisconnect, serverconnect, serverdisconnect, and log events have been replaced with new events, see addon documentation for details (@mhils)
  • Contentviews now implement render_priority instead of should_render, allowing more specialization (@mhils)
  • Addition of block_list option to block requests with a set status code (@ericbeland)
  • Make mitmweb columns configurable and customizable (@gorogoroumaru)
  • Automatic JSON view mode when +json suffix in content type (@kam800)
  • Use pyca/cryptography to generate certificates, not pyOpenSSL (@mhils)
  • Remove the legacy protocol stack (@Kriechi)
  • Remove all deprecated pathod and pathoc tools and modules (@Kriechi)
  • In reverse proxy mode, mitmproxy now does not assume TLS if no scheme is given but a custom port is provided (@mhils)
  • Remove the following options: http2_priority, relax_http_form_validation, upstream_bind_address, spoof_source_address, and stream_websockets. If you depended on one of them please let us know. mitmproxy never phones home, which means we don’t know how prominently these options were used. (@mhils)
  • Fix IDNA host ‘Bad HTTP request line’ error (@grahamrobbins)
  • Pressing ? now exits console help view (@abitrolly)
  • --modify-headers now works correctly when modifying a header that is also part of the filter expression (@Prinzhorn)
  • Fix SNI-related reproducibility issues when exporting to curl/httpie commands. (@dkasak)
  • Add option export_preserve_original_ip to force exported command to connect to IP from original request. Only supports curl at the moment. (@dkasak)
  • Major proxy protocol testing (@r00t-)
  • Switch Docker image release to be based on Debian (@PeterDaveHello)
  • Multiple Browsers: The browser.start command may be executed more than once to start additional browser sessions. (@rbdixon)
  • Improve readability of SHA256 fingerprint. (@wrekone)
  • Metadata and Replay Flow Filters: Flows may be filtered based on metadata and replay status. (@rbdixon)
  • Flow control: don’t read connection data faster than it can be forwarded. (@hazcod)
  • Docker images for ARM64 architecture (@hazcod, @mhils)
  • Fix parsing of certificate issuer/subject with escaped special characters (@Prinzhorn)
  • Customize markers with emoji, and filters: The flow.mark command may be used to mark a flow with either the default “red ball” marker, a single character, or an emoji like :grapes:. Use the ~marker filter to filter on marker characters. (@rbdixon)
  • New flow.comment command to add a comment to the flow. Add ~comment <regex> filter syntax to search flow comments. (@rbdixon)
  • Fix multipart forms losing boundary values on edit. (@roytu)
  • Transfer-Encoding: chunked HTTP message bodies are now retained if they are below the stream_large_bodies limit. (@mhils)
  • json() method for HTTP Request and Response instances will return decoded JSON body. (@rbdixon)
  • Support for HTTP/2 Push Promises has been dropped. (@mhils)
  • Make it possible to set sequence options from the command line. (@Yopi)
